Universal Robots has sold more than 50,000 collaborative robots which are used in several thousand production environments every day around the world.
WMH Robotics are a preferred distributor for Universal robots in the UK and provide support from concept through to deployment to ensure your application is successful.
Our family of collaborative robots offers four different payload options - 3, 5, 12.5 and 16 kg. – enabling a wide variety of applications. And with six degrees of freedom, incredible flexibility, and easy integration into existing production environments, our collaborative robots are built to do more.
Easy to Program
Patented technology lets operators with no programming experience quickly set up and operate our cobots with intuitive, 3D visualization. Simply move the robot arm to desired waypoints or touch the arrow keys on the easy-to-use touchscreen tablet.
Fast Setup
Universal Robots has revolutionized cobot set-up, reducing typical robotic deployment measured in weeks to a matter of hours. The average set-up time reported by our customers is only half a day. The out-of-box experience for an untrained operator to unpack the cobot, mount it, and program the first simple task is typically less than an hour.
Flexible Deployment
Don’t be limited by dedicated robotics. Universal Robots are lightweight, space-saving, and easy to re-deploy to multiple applications without changing your production layout. Moving the cobot to new processes is fast and easy, giving you the agility to automate almost any manual task, including those with small batches or fast change-overs. The cobot is able to re-use programs for recurrent tasks.

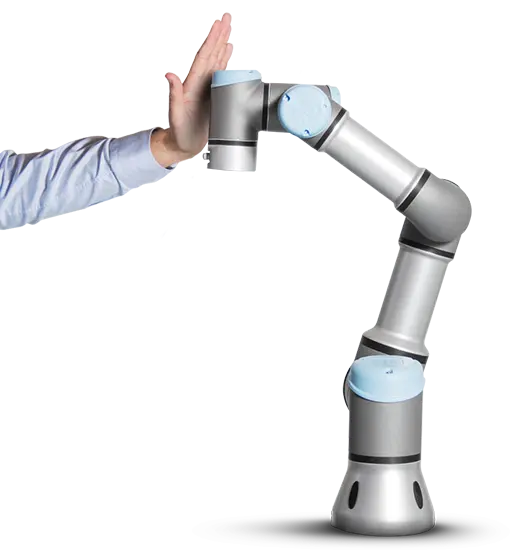

Collaborative & Safe
Now you can replace human operators in dirty, dangerous, and dull jobs to reduce repetitive strain and accidental injuries. Eighty percent of the thousands of UR robots worldwide operate with no safety guarding (after risk assessment), right beside human operators. The safety system of our robots is approved and certified by TÜV (The German Technical Inspection Association).
UR3e
UR5e
UR10e
UR16e
| fff | UR3e | UR5e | UR10e | UR16e |
|---|---|---|---|---|
| Reach | 500 mm / 19.7 ins | 850 mm / 33.5 ins | 1300 mm / 51.2 ins | 900 mm / 35.4 ins |
| Payload | 3 kg / 6.6 lbs | 5 kg / 11 lbs | 12.5 kg / 27.5 lbs | 16 kg / 35.3 lbs |
| Footprint | 128 mm | 149 mm | 190 mm | 190 mm |
| Weight | 11.2 kg / 24.7 lbs | 20.6 kg / 45.4 lbs | 33.5 kg / 73.9 lbs | 33.1 kg / 73 lbs |
